Our Services
From precision balancing to full reconditioning, shot blasting to genuine spare parts — Planet Turbo covers every stage of turbocharger care with specialist tools and specialist hands.
Choose What Your Turbo Needs
Each service is delivered by turbo specialists using purpose-built equipment. Not sure which you need? Bring the unit in — we’ll diagnose it for you.
Precision Balancing
Dynamic balancing of turbo cores to eliminate vibration at operating speeds up to 230,000 rpm.
Learn more →Shaft Straightening
Correcting bent turbine shafts using specialist rigs — restoring perfect concentricity.
Learn more →Boost Diagnosis
Root-cause analysis of low boost, over-boost, or lag — before you spend on parts.
Learn more →Full Turbo Reconditioning
Complete strip-down, cleaning, replacement of wear parts, balance and reassembly.
Learn more →Shot Blasting
Non-damaging media blasting of housings — removing carbon and rust without harming metal.
Learn more →Spares & Genuine Parts
OEM and quality replacement parts — CHRAs, turbine wheels, compressor wheels, seals, kits.
Learn more →

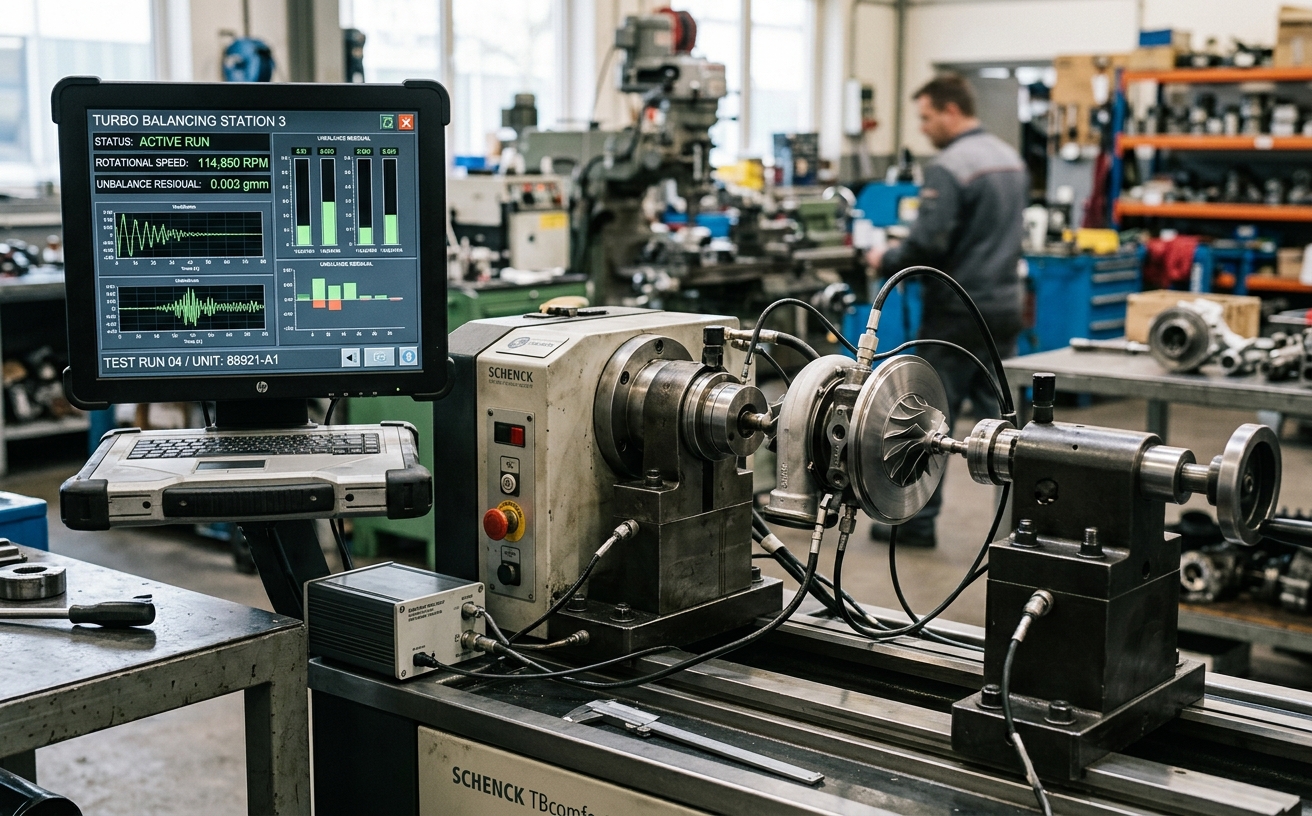

Vibration-Free, Every Time
A turbocharger core spins at speeds most engines can’t dream of — up to 230,000 rpm. At those speeds, even a fraction of a gram of imbalance becomes a punishing vibration that destroys bearings within hours.
Our dynamic balancing rig measures imbalance to within 0.01 g·mm, then guides precision material removal until the core spins perfectly true. It’s the single most important step in any turbo rebuild — and one you cannot skip.
- Two-plane dynamic balancing
- Sub-milligram accuracy at full operating speed
- Computer-generated balance report included
Restoring Perfect Concentricity
Foreign object impacts, over-speeding and thermal shock can leave a turbine shaft with a fraction of a millimetre of bend — invisible to the eye but catastrophic in service.
Where the shaft is repairable, we use a specialist straightening rig with dial indicators reading to 0.001 mm to bring it back to true. Where it isn’t, we replace the wheel-and-shaft assembly with a matched OEM equivalent.
- Dial-indicator concentricity check on both journals
- Cold-straightening rig for repairable shafts
- Honest advice when a shaft is beyond economic repair
Diagnose First. Fix Second.
Half the turbos brought to us for “replacement” turn out to be perfectly fine — the real problem was elsewhere. A blocked catalytic converter, sticking actuator, leaking intercooler pipe, or a faulty MAP sensor can all mimic a failing turbo.
We run a structured diagnosis: physical inspection, actuator check, wastegate/VNT movement test, boost pressure reading, and axial/radial play measurement. Only when the turbo is proven to be the culprit do we recommend rebuild or replacement.
- Physical inspection of shaft play and blade condition
- Actuator function test — pneumatic or electronic
- Boost pressure logging under load
- Written diagnostic report

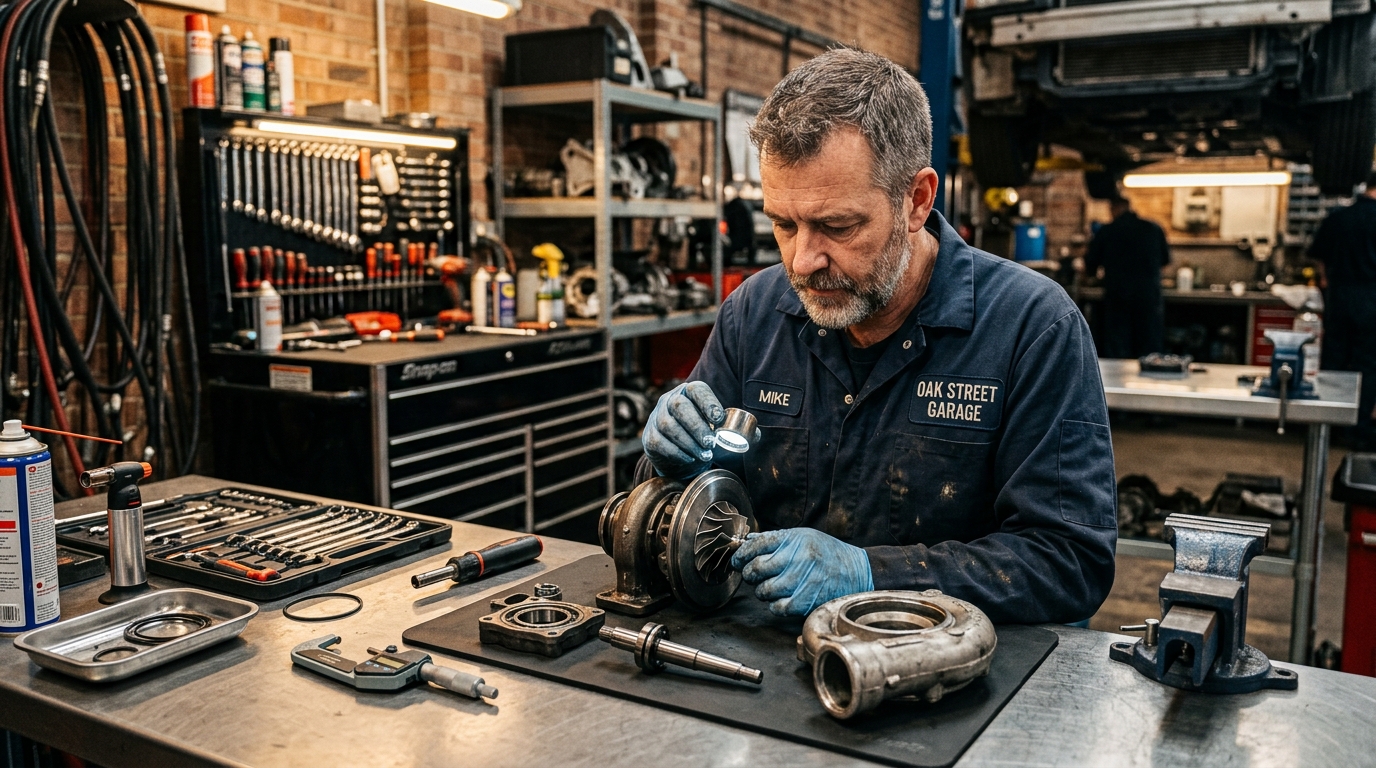

Like New, Guaranteed
Our flagship service. A complete strip-down to the last seal, thorough cleaning of every housing and passageway, inspection of every wear surface, replacement of all seals, bearings and journal components with genuine parts, precision balancing, and reassembly to OEM torque specs.
You get back a turbo that performs like new, at a fraction of the replacement cost — with a workmanship guarantee.
- Complete disassembly & component inspection
- Ultrasonic cleaning of housings and passageways
- All seals, bearings & journal parts replaced with genuine OEM
- Two-plane dynamic balance
- Torque-spec reassembly with quality control
- Workmanship guarantee

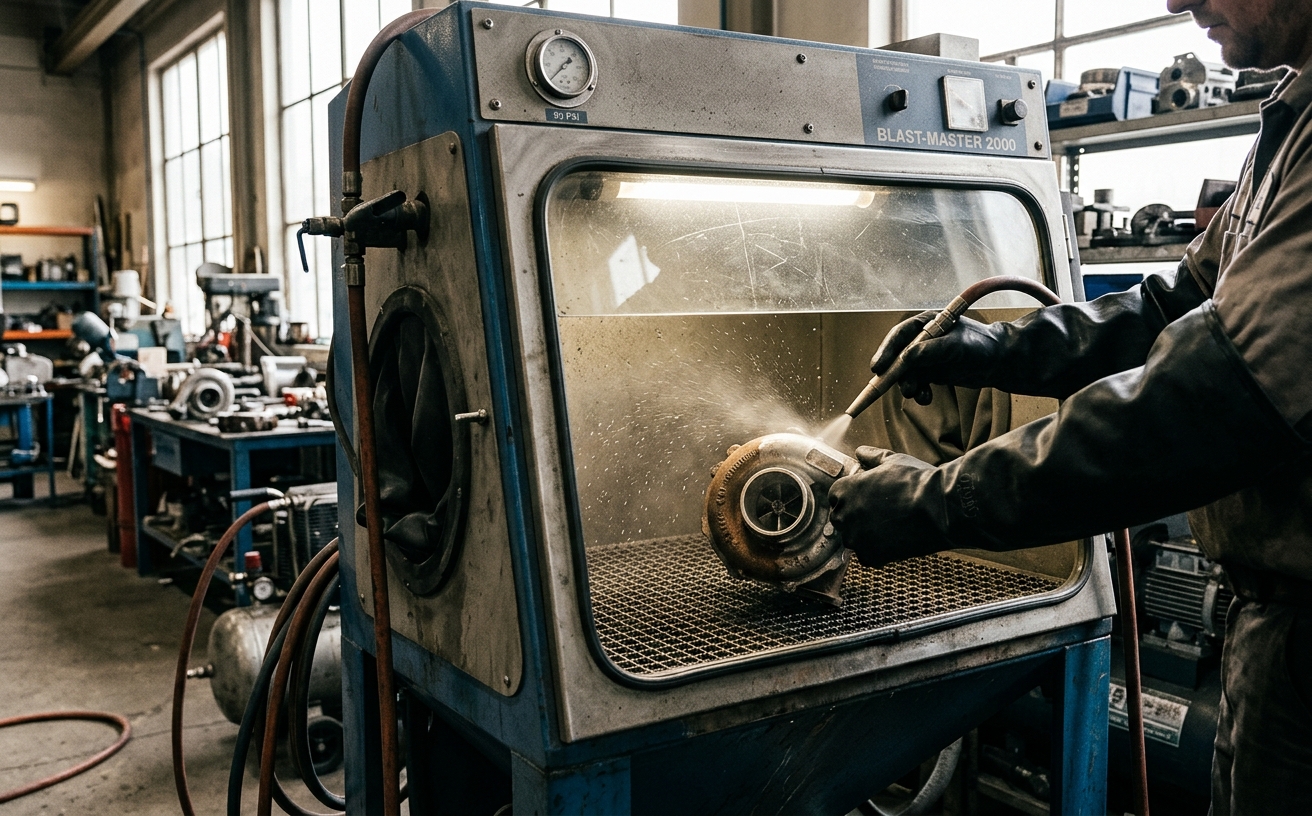

Clean Without Compromise
Carbon buildup in exhaust housings and rust on turbine volutes strangle a turbo’s efficiency. Chemical stripping can eat into base metal; wire brushing leaves surface grooves that collect more carbon later.
Our shot blasting cabinet uses graded media that lifts contamination cleanly off the metal without damaging the substrate — returning castings to a smooth, factory-fresh finish.
- Fine media selection matched to substrate
- Enclosed cabinet — no dust escapes
- Perfect for housings, mounting flanges & manifolds
The Right Part, First Time
We stock and source genuine OEM turbo spare parts — from complete core cartridges (CHRAs) and turbine wheels down to journal bearings, seals and rebuild kits. If we don’t have it on the shelf, we know exactly where to get it.
Because turbo parts are so application-specific, bring us your unit or its part number and we’ll match the exact spare you need.
Not Sure Which Service You Need?
Bring the unit in. Free diagnosis, honest recommendation, fair price.
